OVERVIEW:
These filtration units are Modular and can be assembled in a variety of different combinations, they can be mounted Vertically or Horizontally supplying or extracting air from rooms for positive or negative pressure, there are 2 main sizes of filtration units available as standard but any size can be made up to suit the volume of air to be handled for your needs, they come with the following options of filtration: – For larger units see our AHU Units
- Pre Filtration
- Secondary (up to 95%) filtration
- HEPA filtration to H14
- Activated carbon or other absorption media can also be added
AN AVAILABLE OPTION:
Filter monitoring with differential pressure gauges as well as variable speed controlling with manual speed controls – the units come as a standard 230 Volt centrifical fan, but the larger units can be fitted with 380 Volt Axial flow fans
SIZES:

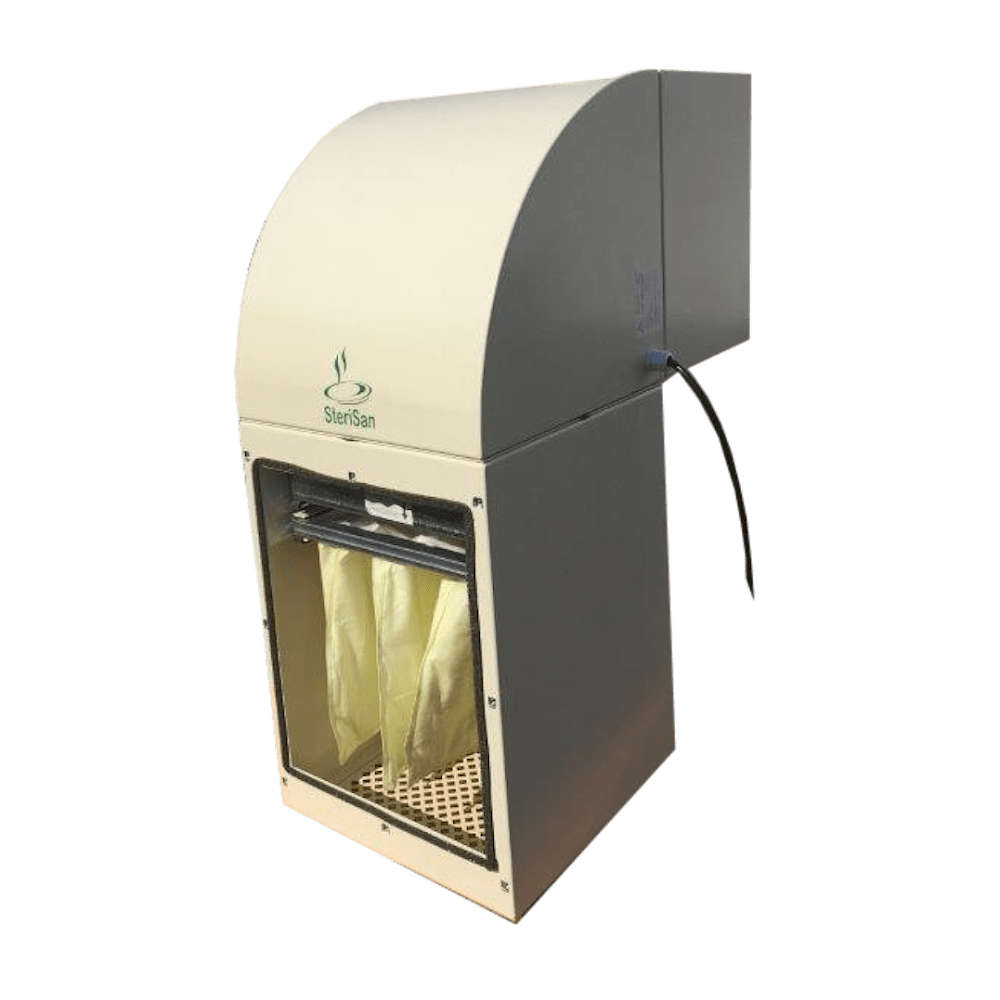

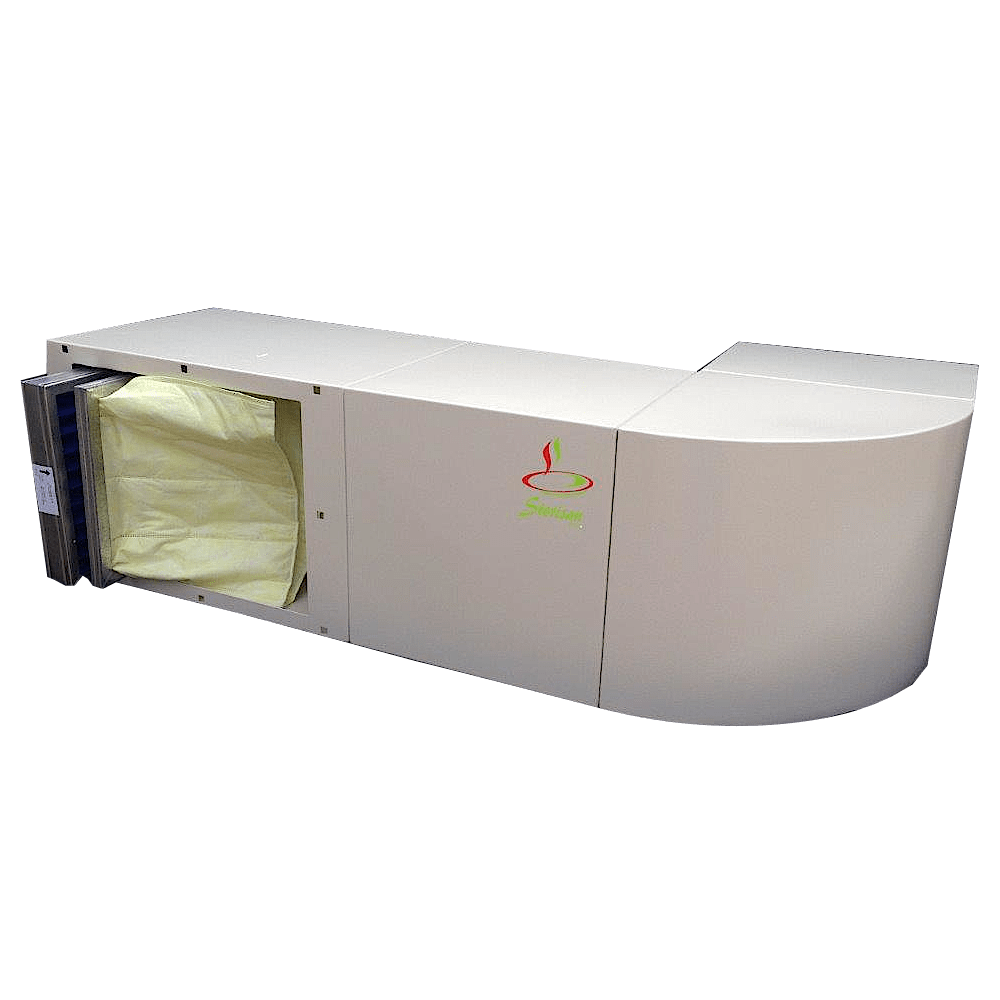

- 3300 Unit Supplies air up to 0,25 m3/s or 850 m3/h
- 3600 Unit Supplies Air up to 0,95 m3/s or 3400 m3/h
For higher volumes of air, multiple units can be used or the bigger 4, 6 and 9 filter units can be made upon request
To suit many different applications and designs
